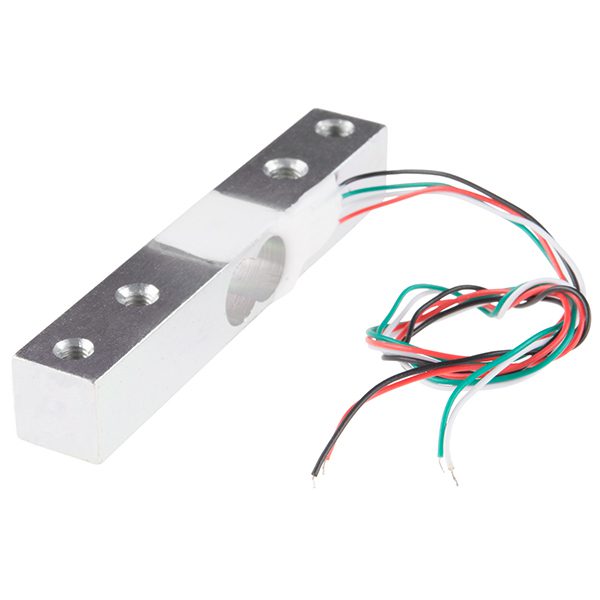

5Kg Range Weighing Sensor Load Cell Sensor for Electronic YZC-133 in Pakistan
$ 1.05
Specifications of Portable Electronic Weight Sensor-Load Cell (5Kg): Product Name Portable Electronic Weight Sensor-Load Cell Rated Load 5Kg /11lb Rated Output 1.2±0.1mV/V Input Resistance 1066 ± 20 Ohm Output Resistance 1000 ± 20 Ohm Insulation Resistance 2000 Ohm Compensated Temperature Range -10°C~ 50°C Safety Overload 120%F.S Recommend Excitation Voltage DC 5V Max Excitation Voltage DC 10V Cable Length 245mm/9.6” Material Aluminium Alloy Red E Black E- White S Green S-
